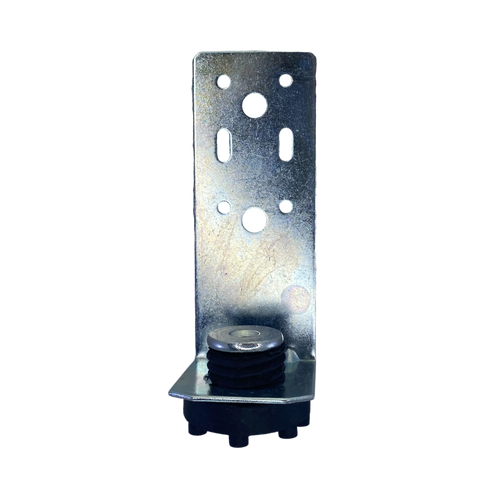

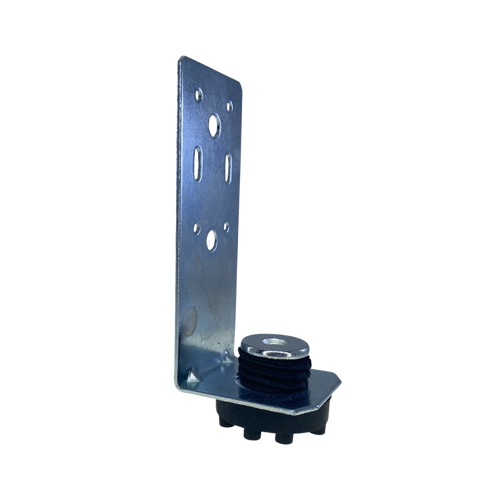

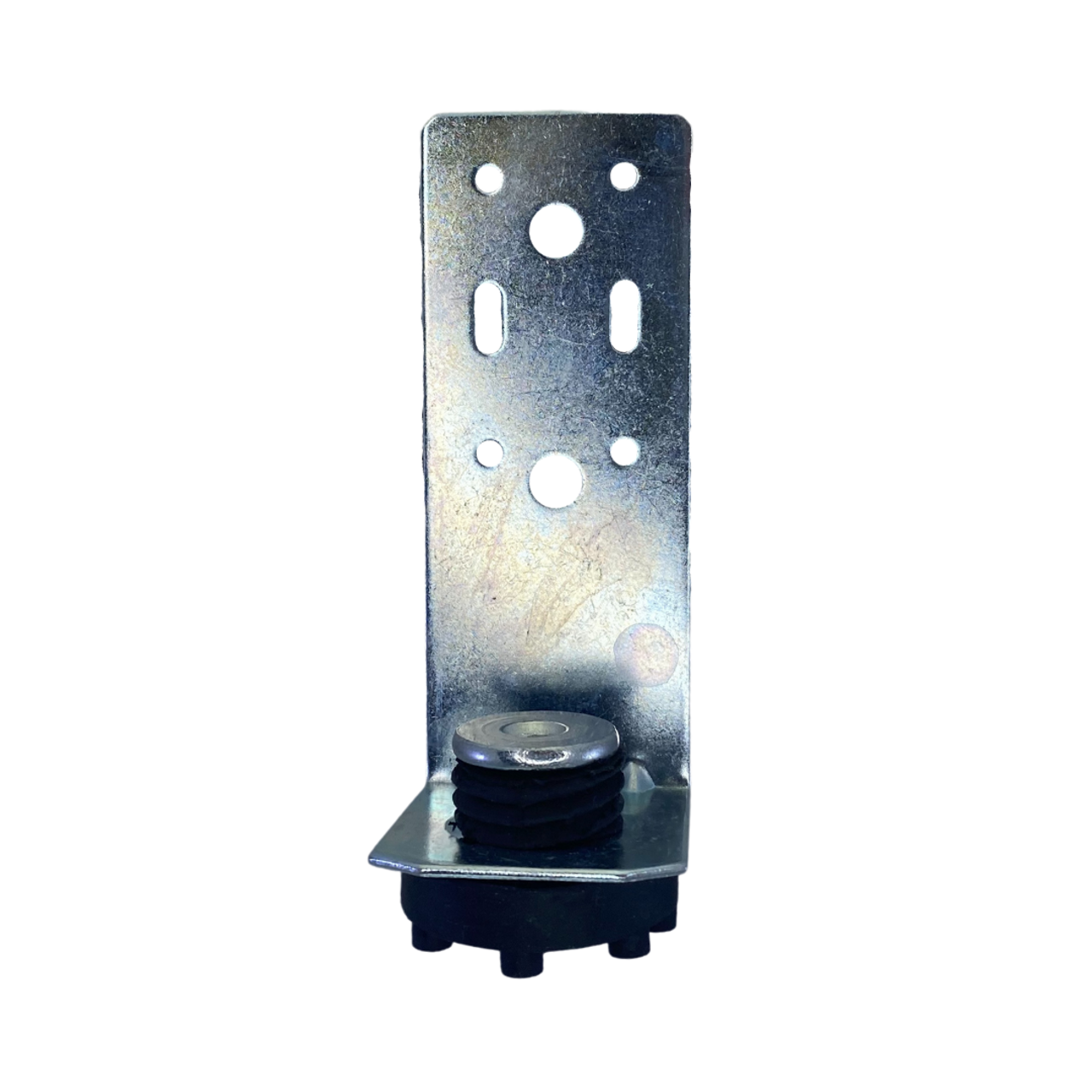

RSIC-DC04® Sound Isolation Clip

 The RSIC-DC04® is a versatile clip that can be used to soundproof a ceiling, garage door (motors or rails), speakers, vent fans, recessed lights, projector mounts, electrical boxes, ceiling fans, and more.

Features

• Soundproof dropped ceilings and mechanical parts
• Isolate mechanical parts and control noise (ceiling fans, garage door rails and mounts), electrical box, vent/exhaust fans, etc)
• Supports up to 2 layers of 5/8" drywall when installed 24" x 48" oc
• For heavier installs, reach out to discuss the heavy duty versions of the RSIC-DC04® (up to 144 lbs per isolator)
• Proudly made in the USA

Specs

Resources

Installation Instructions

• Fasten the Resilient Sound Isolation Clip (RSIC-DC04®) to the wood or metal studs members with approved fasteners.

• Resilient Sound Isolation Clip (RSIC-DC04®) shall be Maximum 48 inches by 48 inches on center maximum.

• Place 1/4” threaded rod secured through the internal ferrule of the RSIC-DC04® clip with nuts and a fender washer to support the large side of the RSIC-DC04® clip rubber section.

• When using tie wire attached to the RSIC-DC04® clip to hang a drywall grid ceiling follow the installation instruction provided by the manufacturer of the grid ceiling system.

• Seal all potential air leaks with non-hardening acoustical caulking to achieve best noise control results. Use fire rated sealant where required.

• (see install guide for more details)

Common Product Uses

• Soundproof any ceiling
• Garage door tracks
• Equipment mounted to the soundproof drop ceiling:
• Speakers
• fans
• lights
• projectors
• electrical boxes
